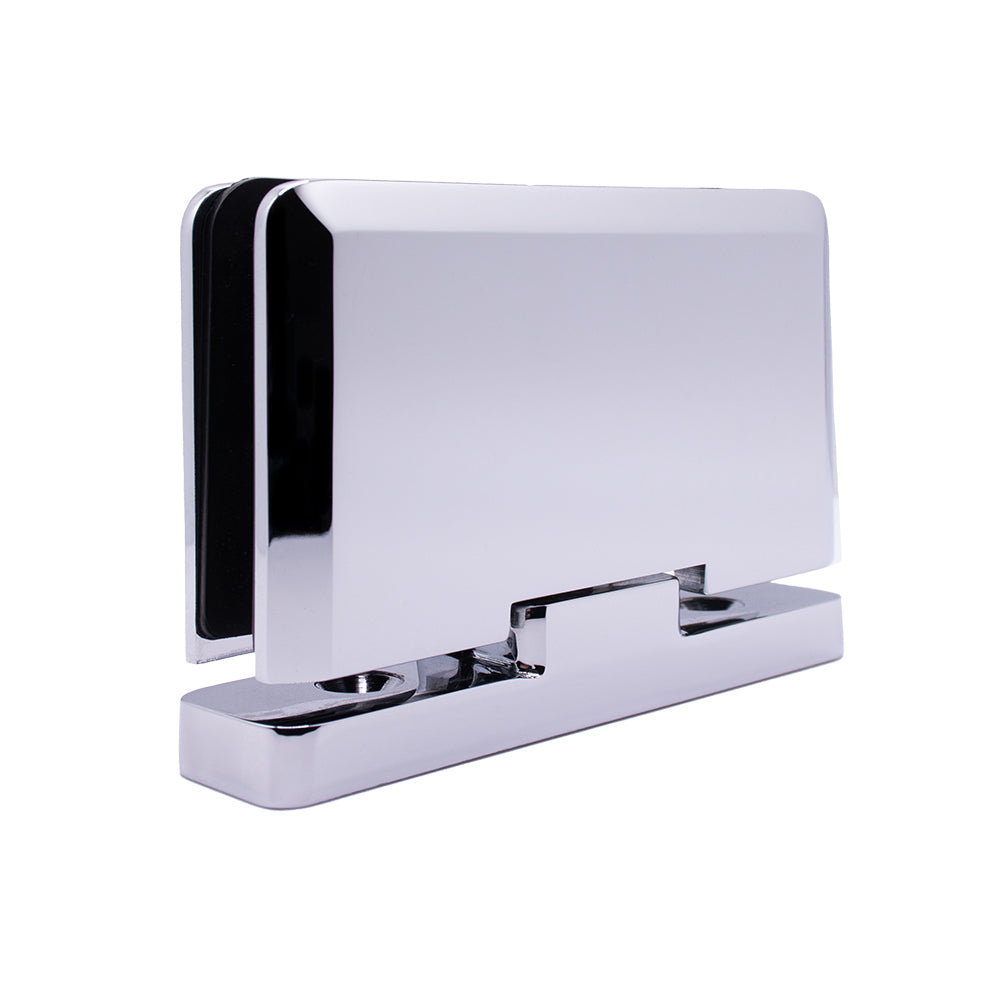

3182T - Standard-Duty Top Mount Pivot Hinge, Beveled Edge

View Technical References

Product Overview

The 3182T Standard-Duty Adjustable Top Mount Pivot Hinge is designed for frameless shower door installations where a top-mounted pivot configuration is required. Featuring a beveled-edge profile and solid brass construction, this hinge installs at the top of the door and works in conjunction with a corresponding bottom pivot to support smooth, controlled door operation.

This top mount pivot hinge includes a self-centering mechanism that engages when the door is within approximately 15 degrees of the closed position, helping guide the door to a consistent closed alignment while maintaining a refined, beveled appearance.

Key Benefits

• Designed specifically for top-mounted pivot applications
• Self-centering action within 15 degrees of the closed position
• Adjustable design supports precise door alignment during installation
• Beveled-edge profile for a softer, refined hardware appearance
• Solid brass construction suitable for wet environments and long-term use

Specifications

Product type: Standard-duty adjustable top mount pivot hinge

Mount position: Top

Edge profile: Beveled edges

Construction: Solid brass

Glass type: Tempered safety glass only

Glass thickness: 3/8 in (10 mm) only

Closing type: Self-centering within 15 degrees of closed position

Cutout required: Yes

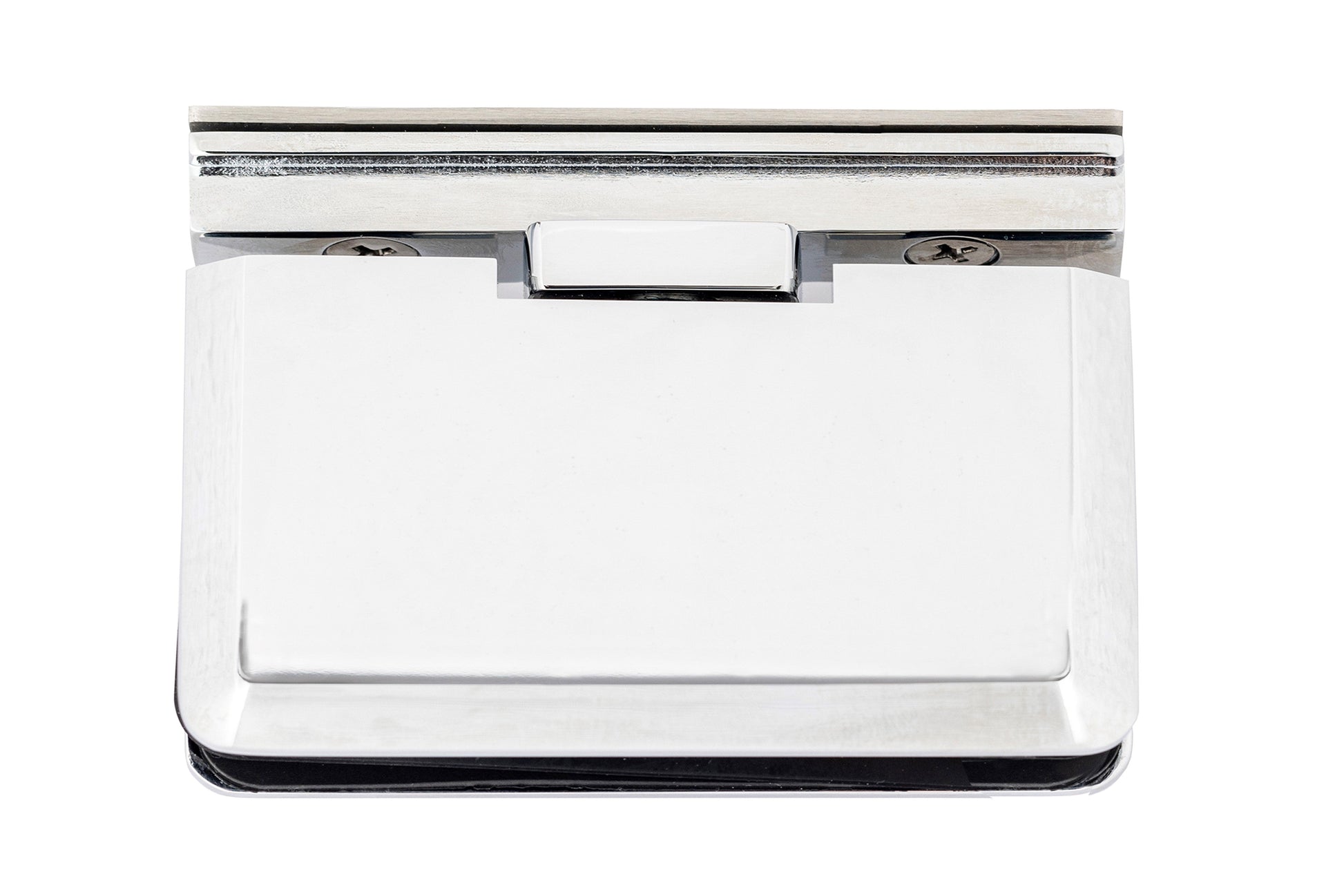

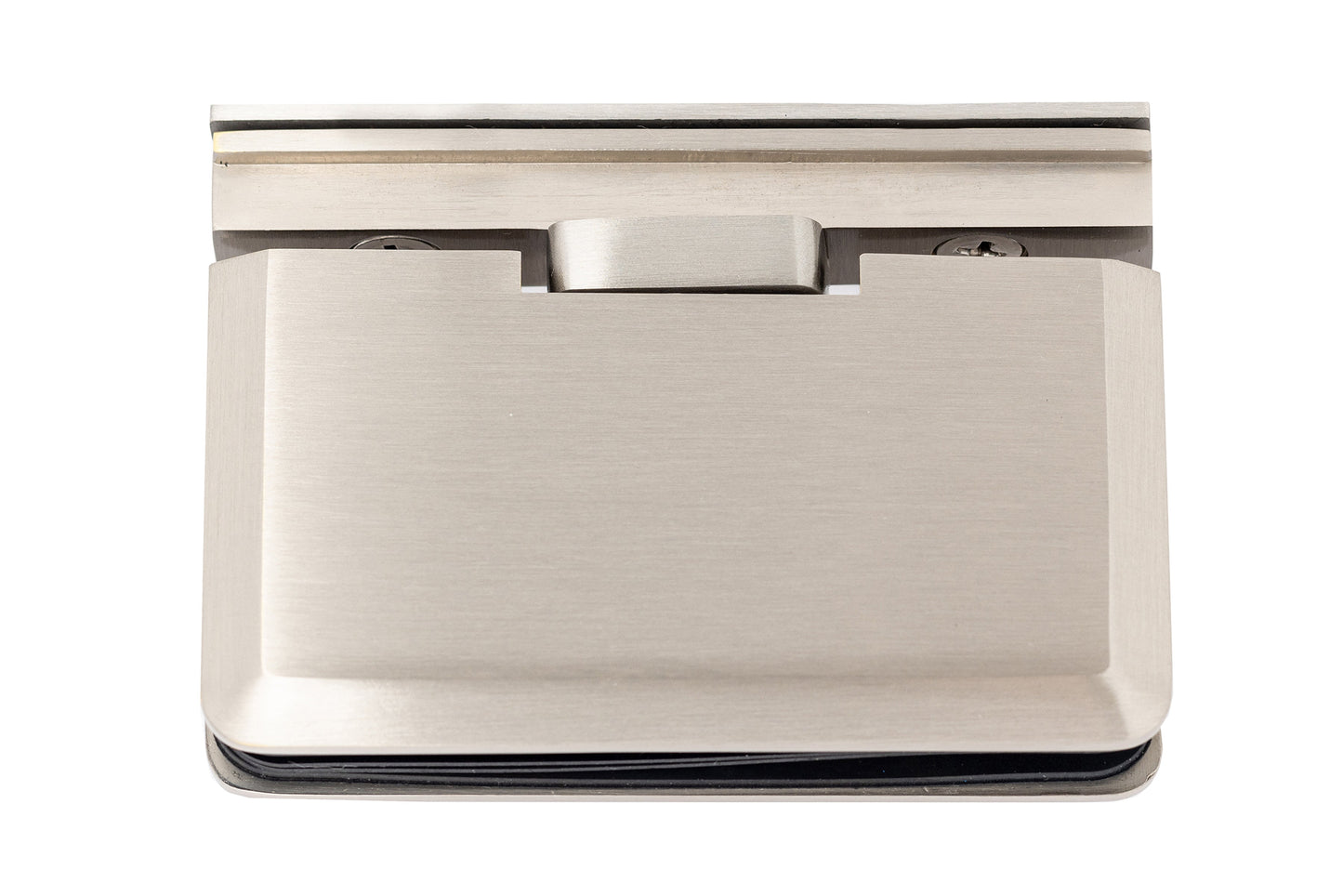

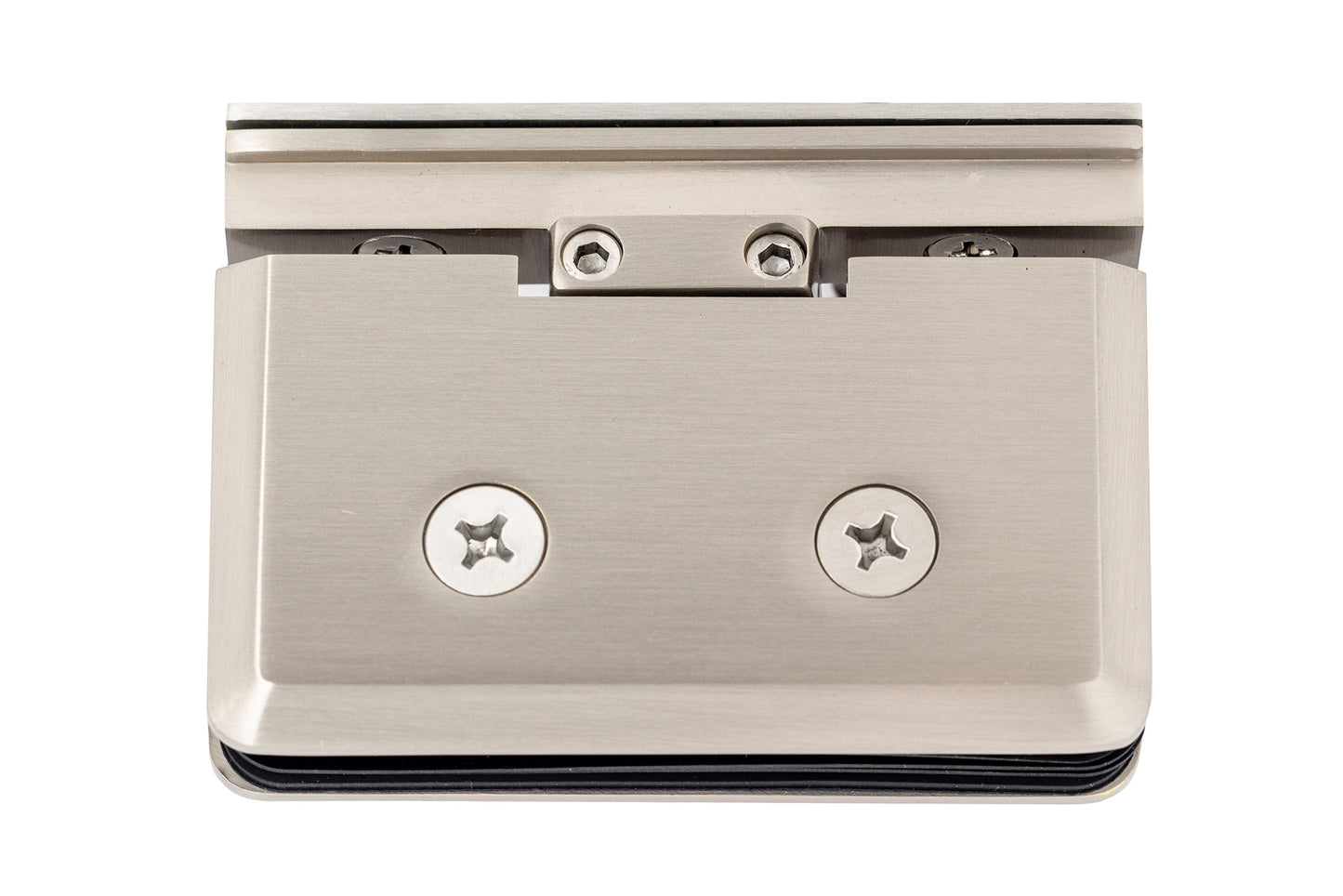

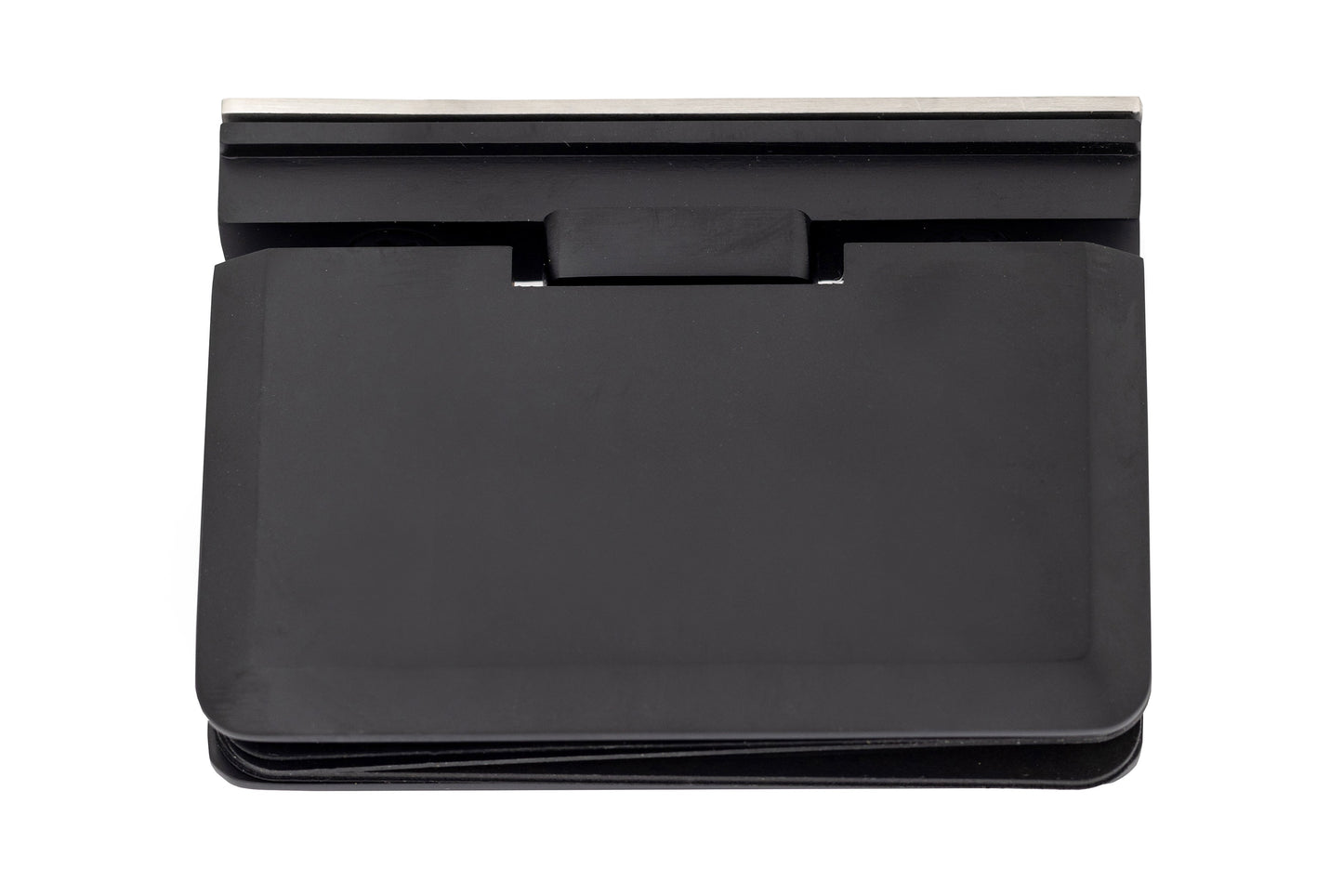

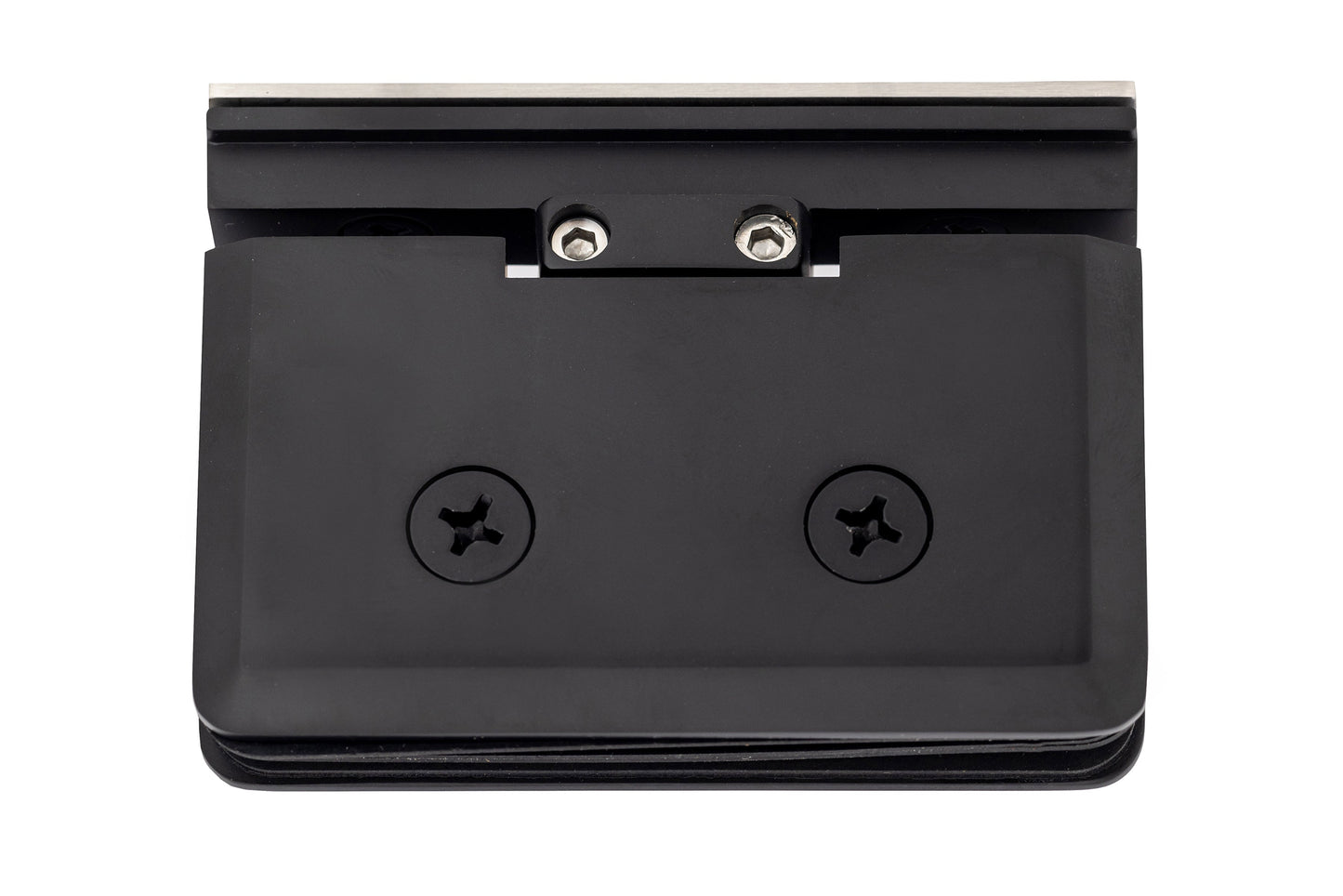

Available finishes: Matte Black, Brushed Nickel, Chrome Polish

Maximum Door Capacities

Using 2 hinges:

• 3/8 in (10 mm) glass: Maximum 100 lbs (45 kg), door width up to 31 in (787 mm)

Note: Do not exceed either the maximum recommended door weight or width when determining the proper quantity of hinges.

Gasket Usage

• 3/8 in (10 mm) glass: Use one gasket on each side

Common Applications

• Top-mounted pivot points for frameless shower doors
• Pivot-style shower doors requiring adjustable top hardware
• Replacement top pivot hinges in existing frameless installations

What’s Included

Adjustable top mount pivot hinge

Convex EPDM gaskets

Mounting screws

Installation template

Installation Notes

This hinge is intended for use with tempered safety glass only. Do not use spray lubricants or abrasive cleaners on the hinge, as these may damage the finish or internal components.

Limitations

This product is intended for use as a top pivot hinge only and must be paired with a compatible bottom pivot hinge. It is not designed for use with non-tempered glass or applications exceeding the recommended door size and weight limits.
