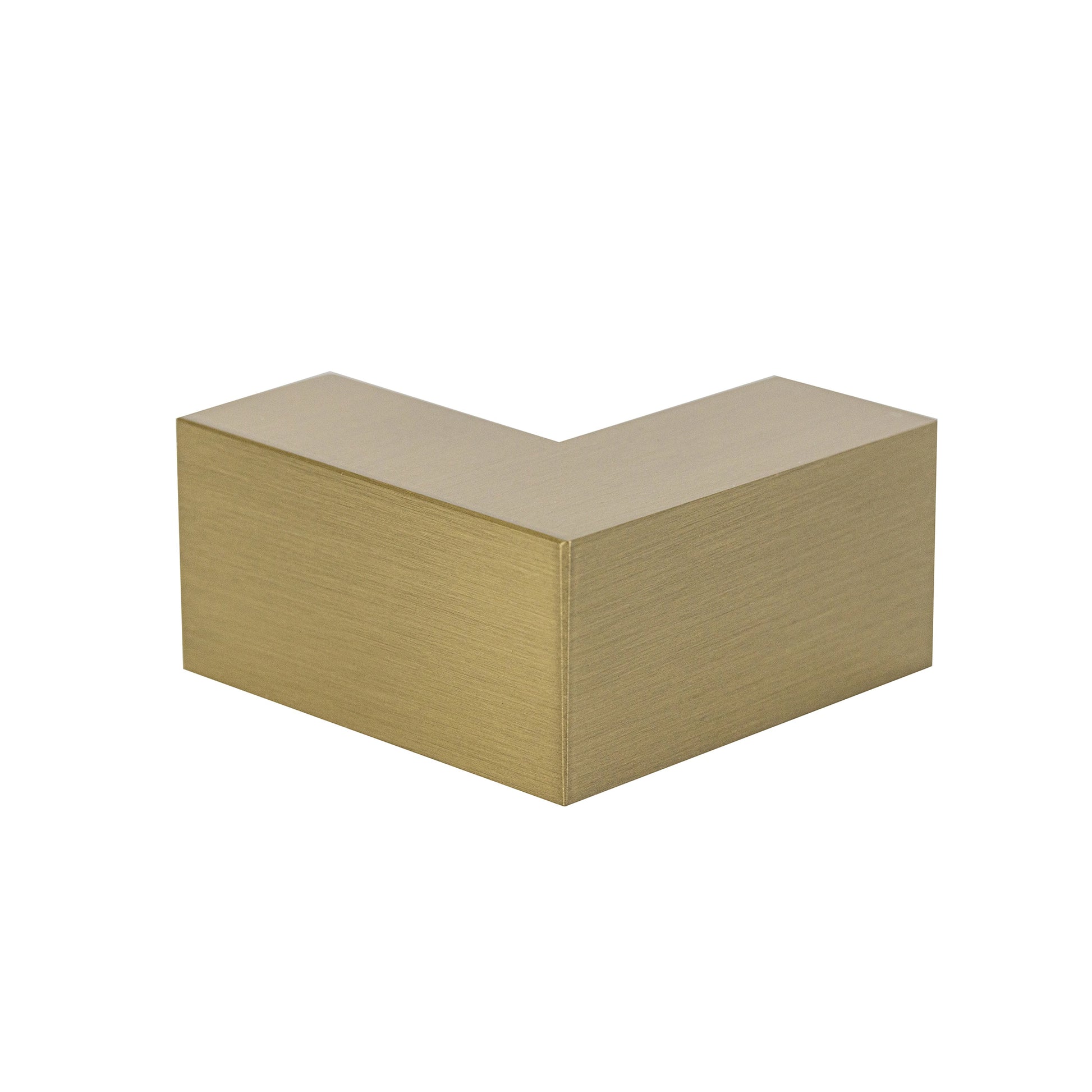

6090 - 90° Sleeve-Over Clamp

Product Overview

The 6090 90° Sleeve-Over Glass Clamp is designed to align and stabilize two fixed glass panels meeting at a 90-degree angle without requiring glass fabrication. Using a sleeve-over, slip-fit design, this clamp allows glass panels to slide into position during installation, providing temporary stabilization and alignment while silicone cures.

This clamp style is commonly used in frameless shower enclosures and fixed glass installations where a clean, minimal glass-to-glass connection is required.

Key Benefits

• Sleeve-over design requires no hole-in-glass fabrication
• Helps align fixed glass panels at a 90-degree angle during installation
• Provides temporary stabilization while silicone cures
• Clean, low-profile appearance suitable for frameless installations
• Solid brass construction suitable for wet environments

Specifications

Product type: 90-degree sleeve-over glass clamp

Construction: Solid brass

Glass type: Tempered safety glass only

Glass thickness range: 5/16 in to 1/2 in (8–12 mm)

Angle: 90 degrees

Glass fabrication required: No

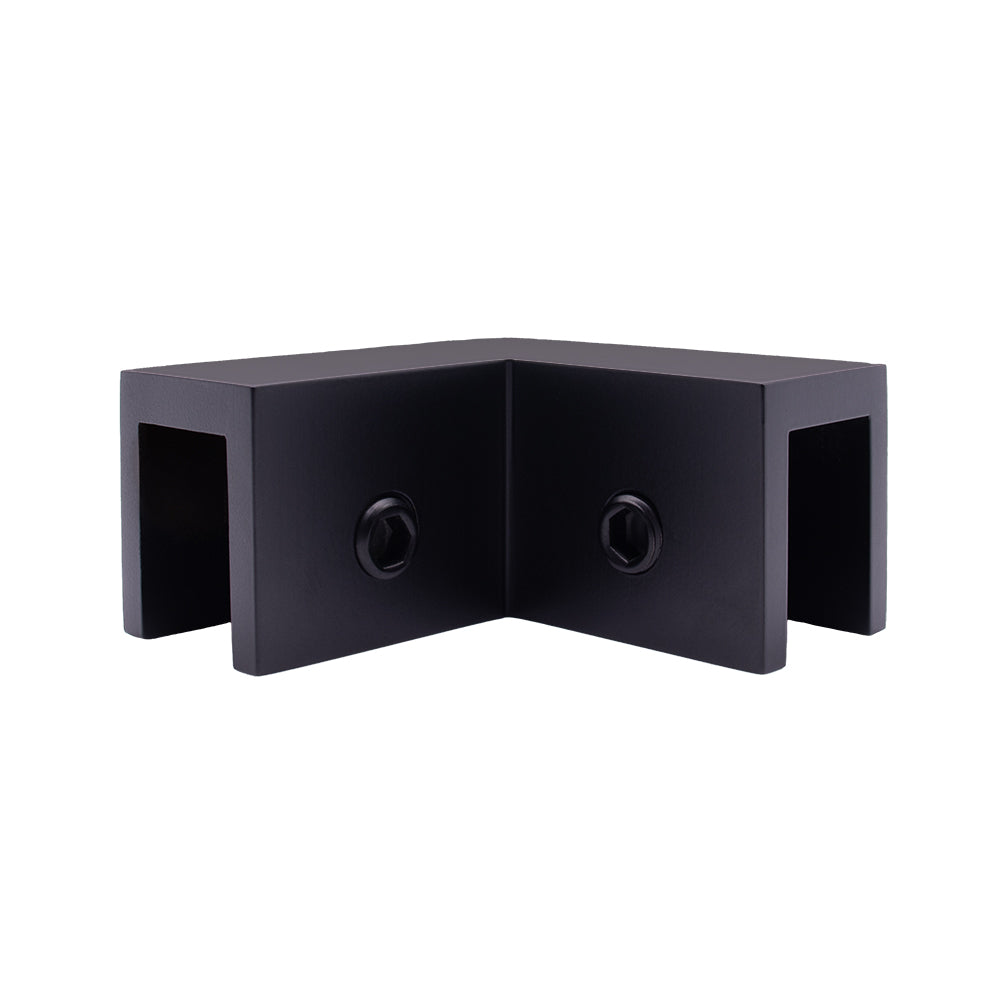

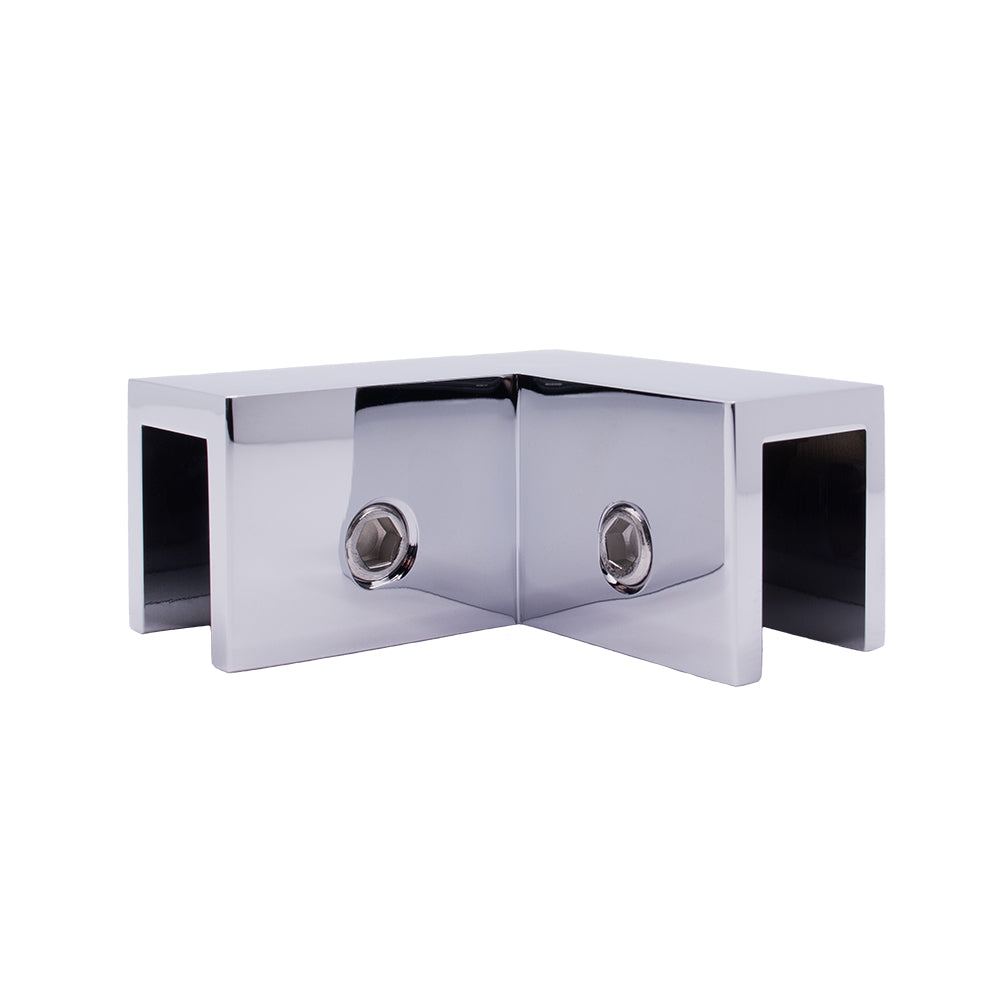

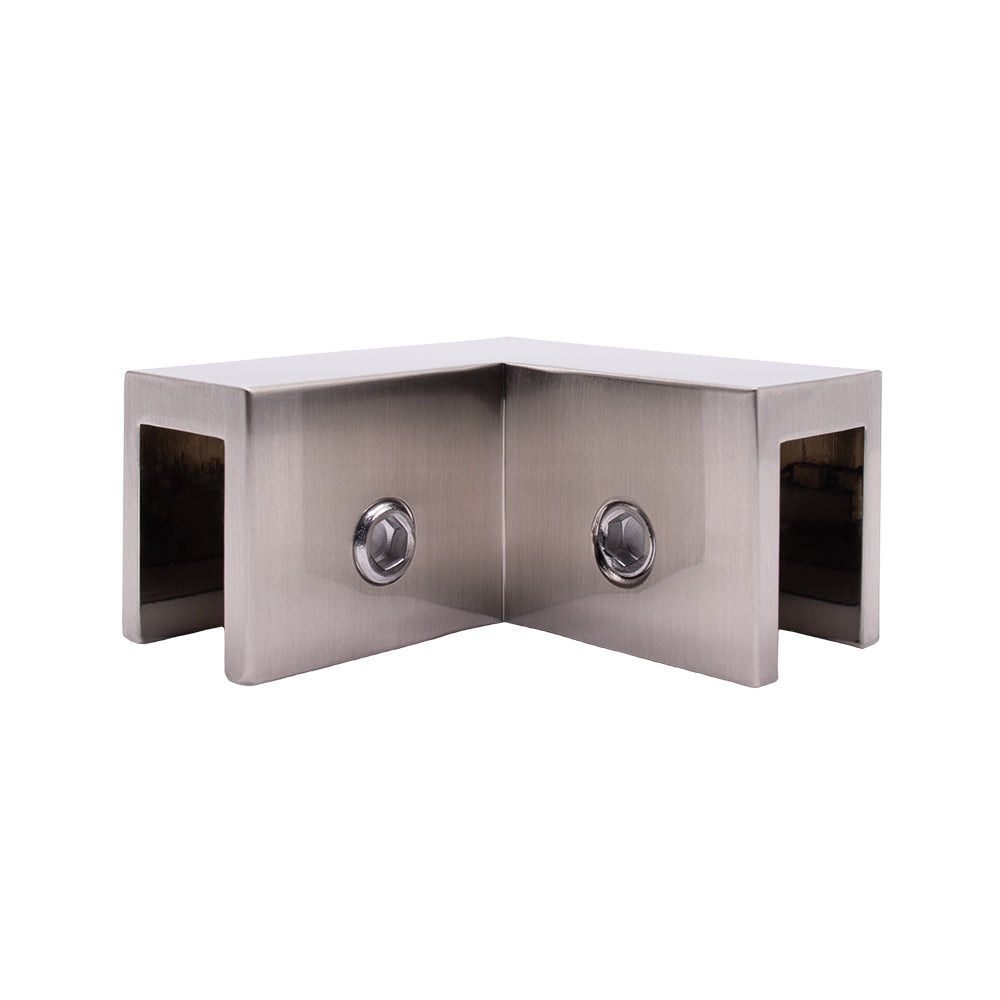

Available finishes: Matte Black, Brushed Nickel, Chrome Polish

Clearance and Gaskets

Designed to maintain standard installation clearances between adjoining glass panels. Clear gaskets are used to protect the glass and assist with alignment during installation.

Common Applications

• Fixed glass panels in frameless shower enclosures
• Glass-to-glass corner connections
• Interior fixed glass installations requiring temporary alignment support

What’s Included

90-degree sleeve-over glass clamp

Clear gaskets

Mounting screws

Installation Notes

This clamp is intended for use with tempered safety glass only. After positioning the glass panels and installing the clamp, clear silicone is typically applied to complete the installation and provide long-term stability.

Limitations

This clamp is designed to assist with alignment and stabilization during installation. It is not intended to replace structural support components such as headers, support bars, or stabilizer arms.
