8010 - Fixed Panel U-Glass Clamp (Hole-in-Glass), Straight Edge

View Technical References

Product Overview

The 8010 Heavy Duty Square Glass Clamp is designed to secure fixed glass panels in frameless shower and architectural glass applications, offering a clean, modern alternative to bulky channel systems. Featuring a square profile and solid brass construction, this clamp is approved for wall, floor, and ceiling mounting, providing installation flexibility across a wide range of fixed-panel layouts.

This clamp style is commonly used in stationary shower panel installations where a rigid mounting point is required, while still allowing installers to maintain proper clearance and finish the glass-to-surface interface with silicone for a clean, professional result.

Key Benefits

• Stabilizes fixed glass panels in frameless shower and interior glass installations
• Approved for wall, floor, and ceiling mounting
• Designed for standard installation clearances, allowing the glass edge to be sealed with silicone for a clean, water-resistant finish
• Solid brass construction suitable for wet environments and long-term use
• Available in multiple finishes to coordinate with surrounding shower hardware

Specifications

Product type: Fixed panel square U-clamp

Material: Solid brass

Glass type: Tempered safety glass only

Glass thickness range: 3/8 in (10 mm) to 1/2 in (12 mm)

Required hole size: 5/8 in (16 mm) or 3/4 in (19 mm)

Clamp dimensions: 2 in × 2 in (50 mm × 50 mm)

Approved mounting surfaces: Wall, floor, and ceiling

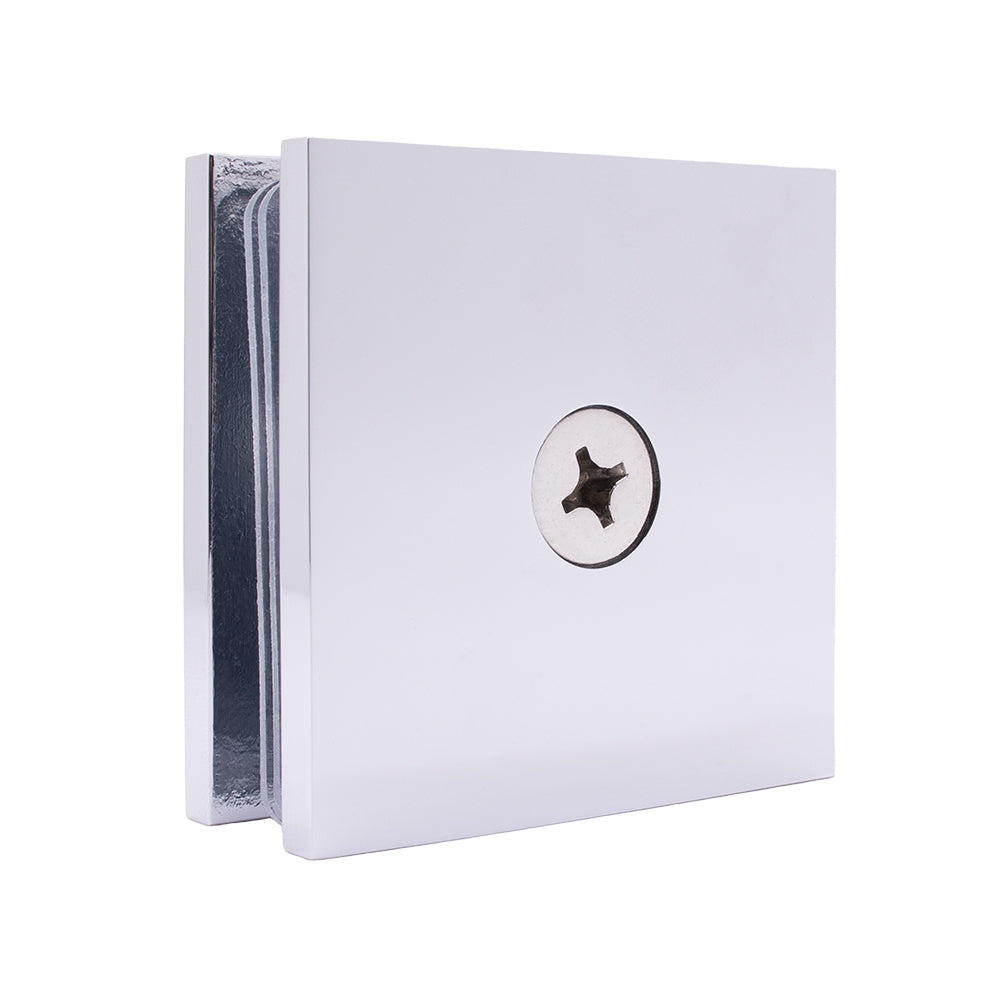

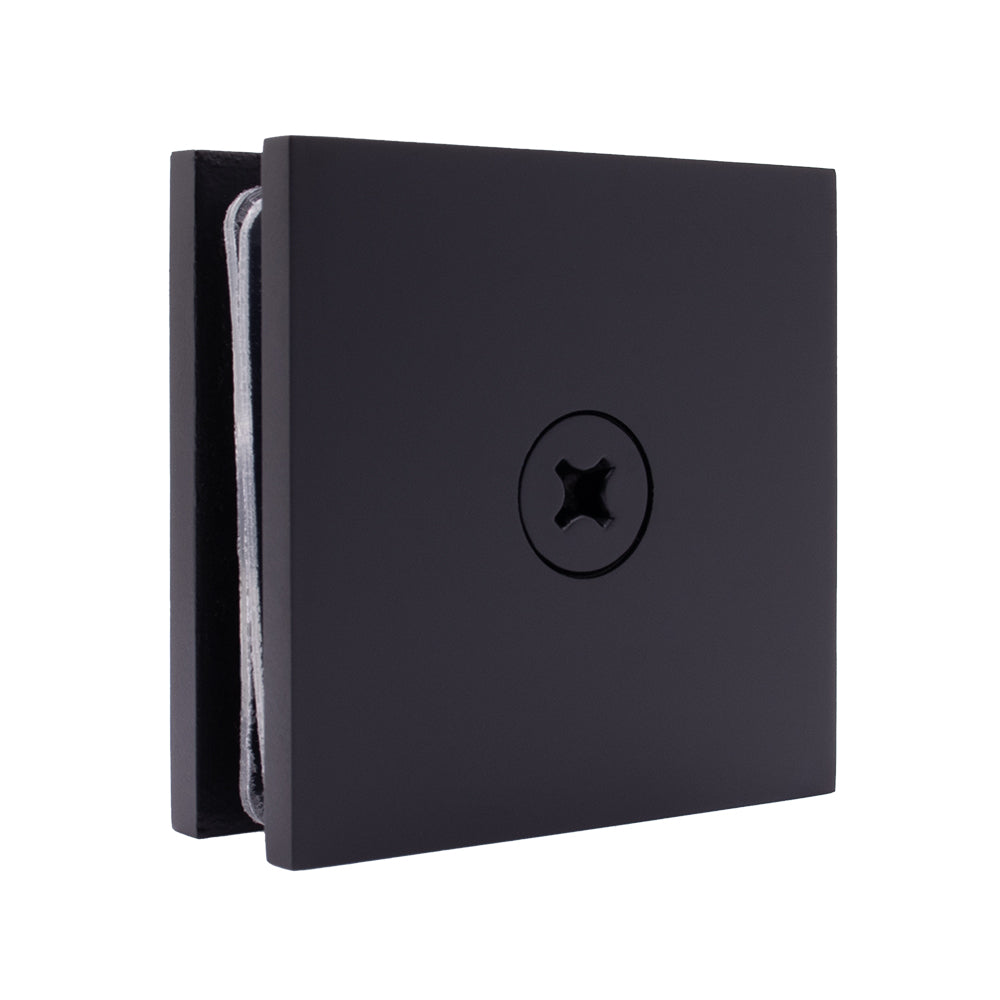

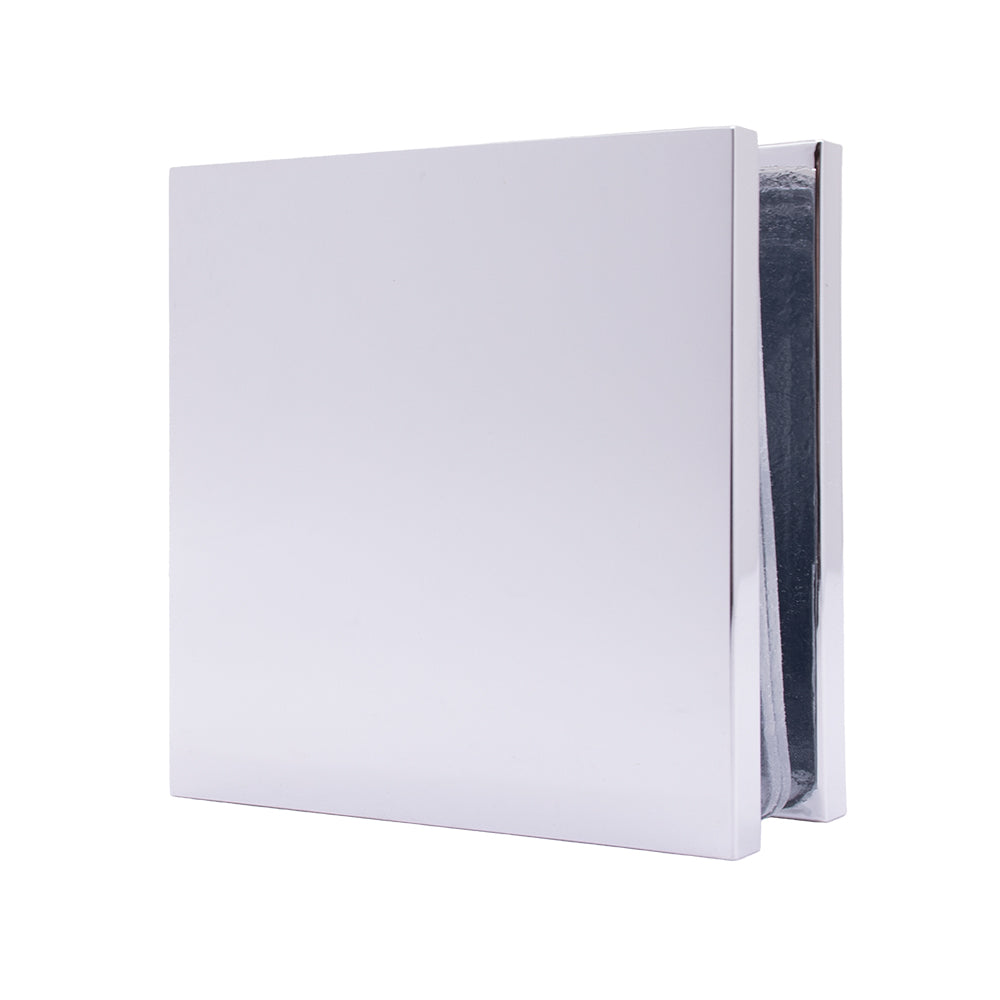

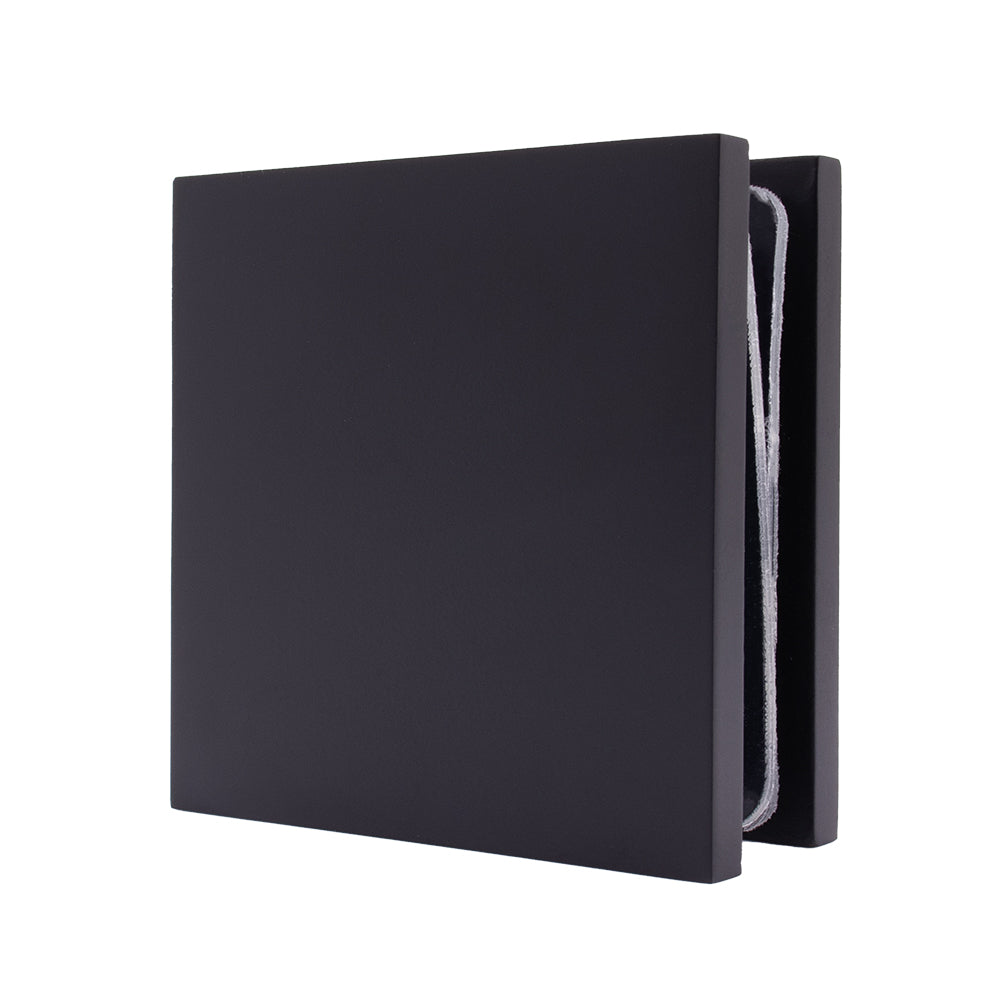

Available finishes: Matte Black, Brushed Nickel, Chrome Polish

Common Applications

• Fixed shower panels in frameless shower enclosures
• Glass stabilization points where minimal hardware visibility is preferred over continuous channel
• Replacement clamps for updating finishes while retaining existing glass

Glass Fabrication Requirements

This clamp requires hole-in-glass fabrication. Glass panels must be drilled to accept either a 5/8 in (16 mm) or 3/4 in (19 mm) mounting hole, depending on fabrication standards and installation requirements.

What’s Included

Heavy duty square glass clamp

Mounting screws

Clear gaskets

Installation Notes

Allow approximately 3/16 in (5 mm) of clearance between the glass edge and the mounting surface. After installation, clear silicone is typically applied to the glass-to-surface interface to achieve a clean, finished, and water-resistant seal.

Limitations

This clamp is intended for use with fixed glass panels only. It is not designed for use on swinging, sliding, or load-bearing glass doors.
