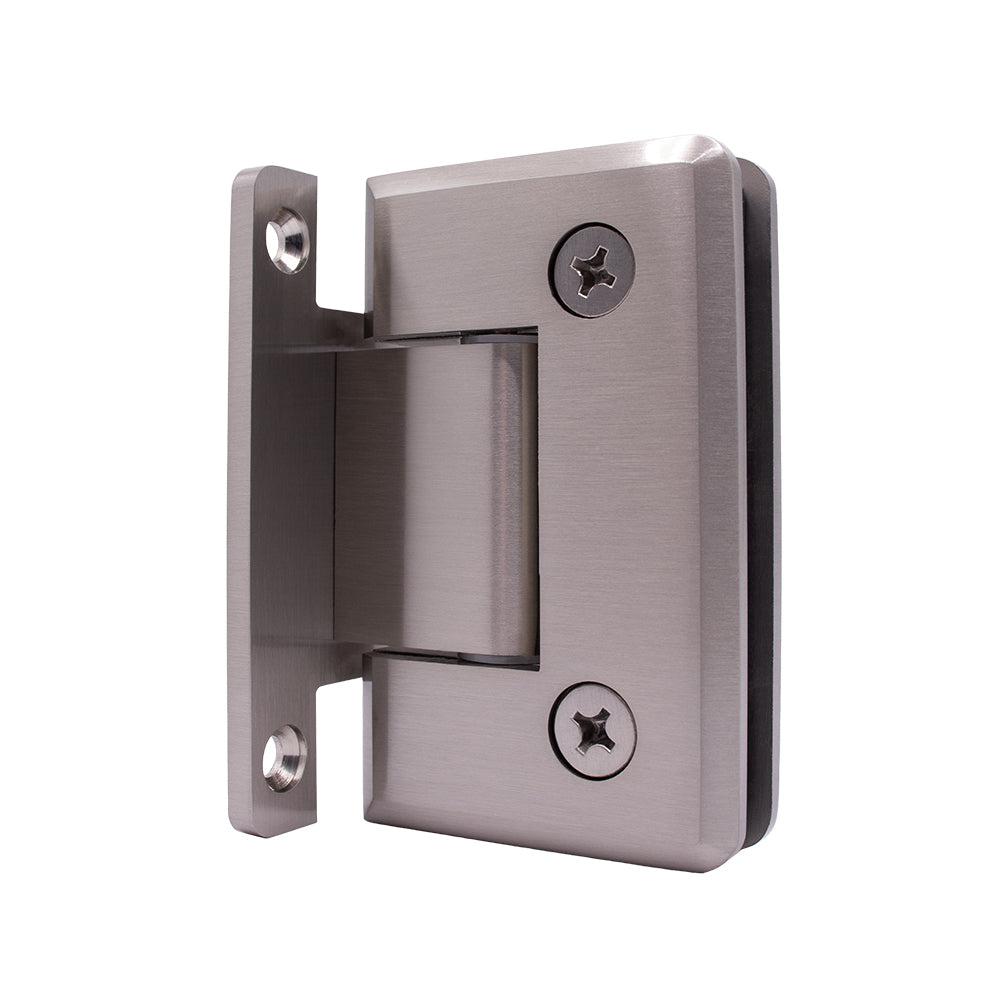

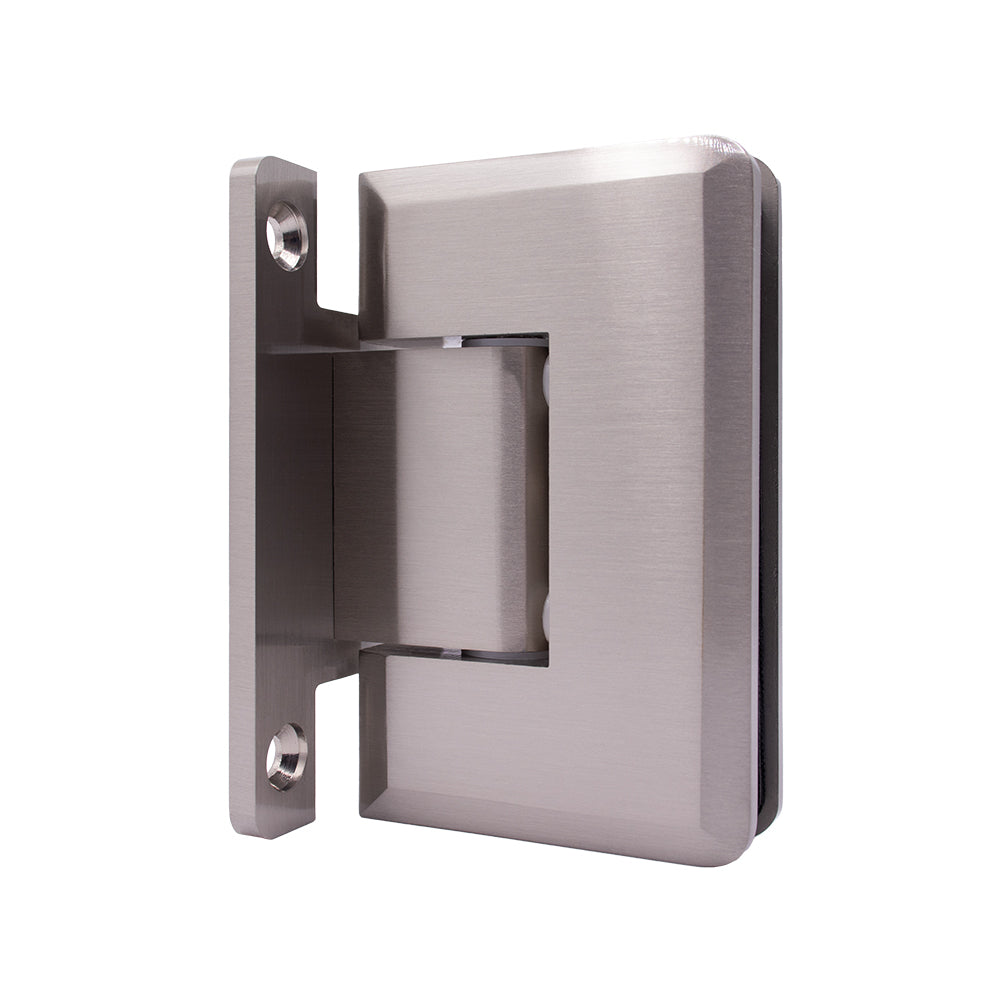

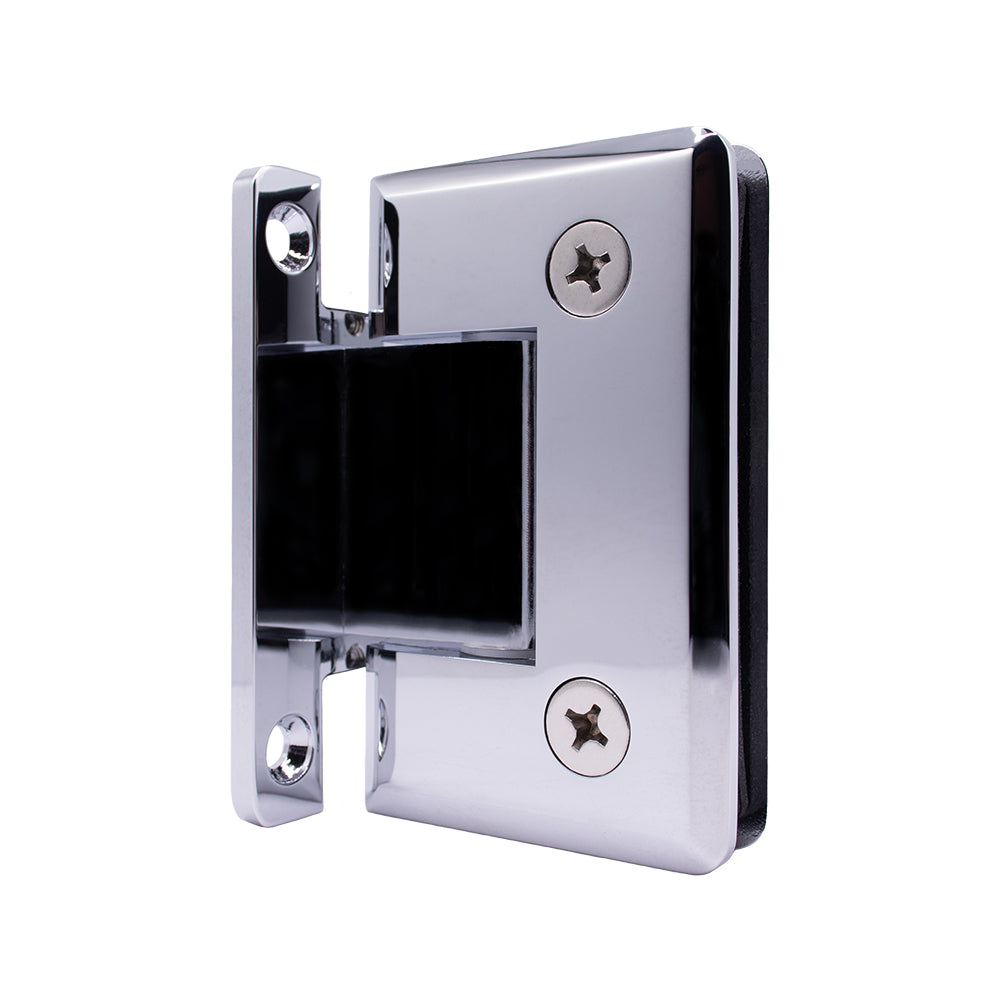

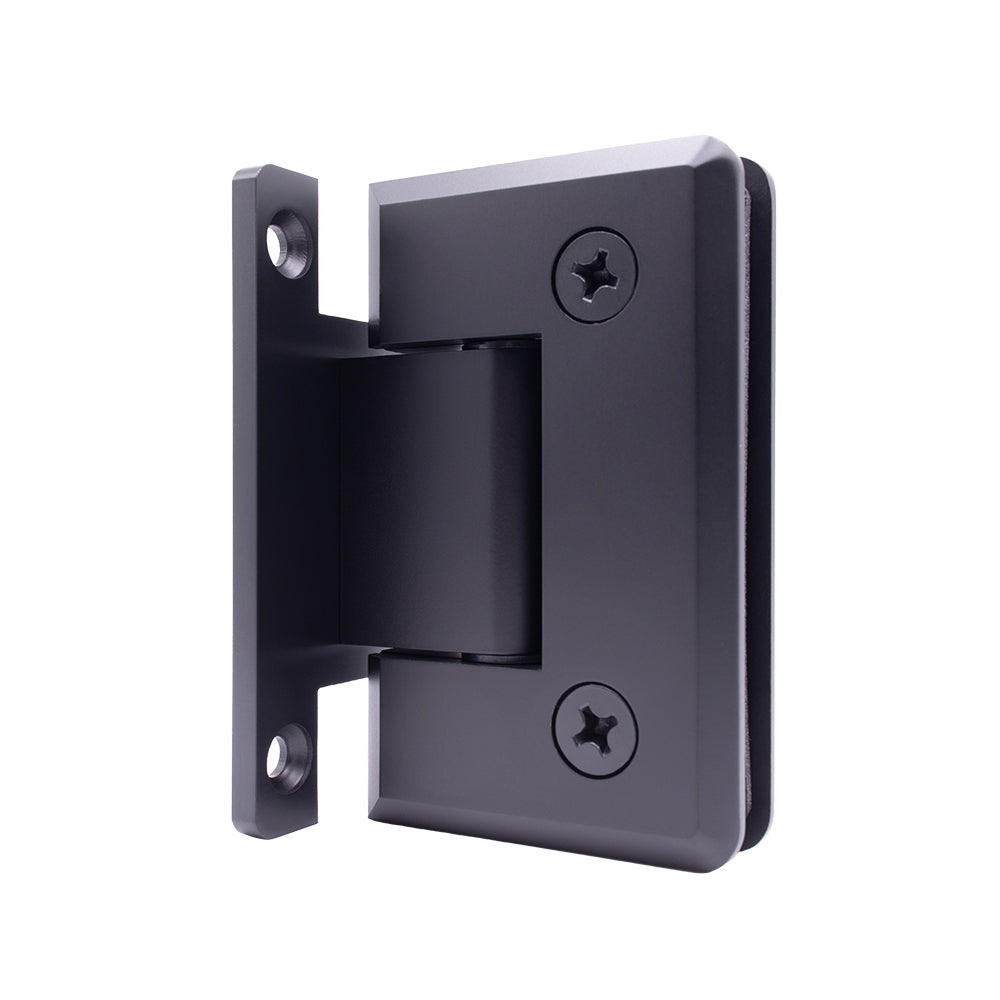

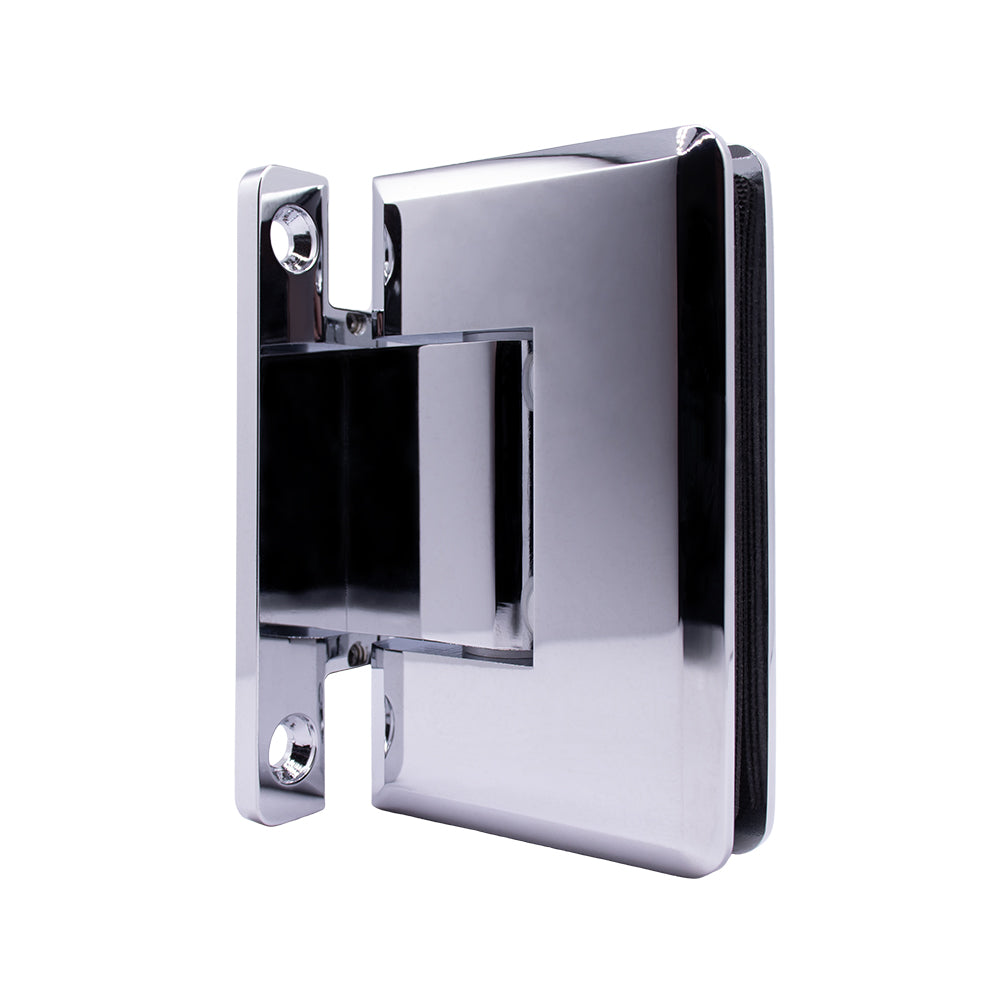

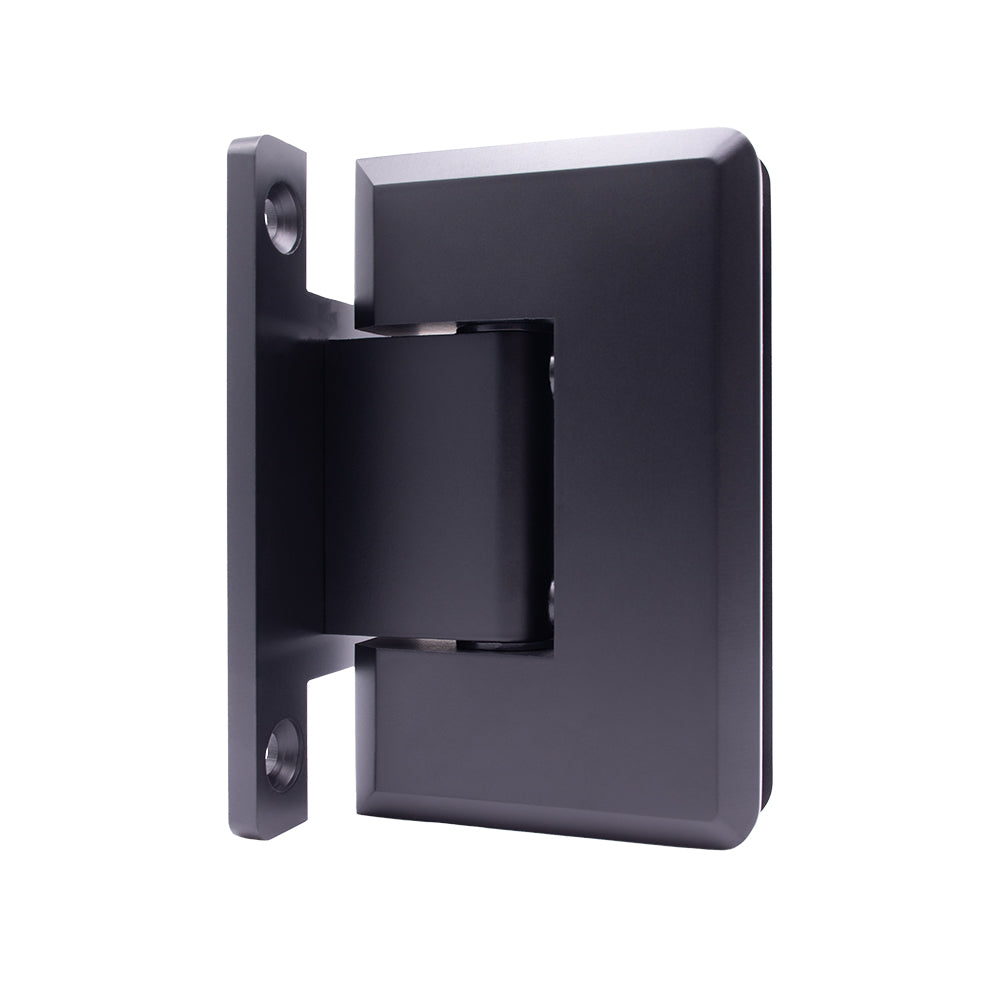

3020 - Standard-Duty Hinge with H-backplate, Beveled Edge

View Technical References

Product Overview

The 3020 Standard-Duty Wall Mount Hinge is designed for frameless shower door applications where reliable performance is required with a softer, beveled-edge aesthetic. Featuring an H-style backplate and solid brass construction, this hinge mounts directly to the wall and supports tempered safety glass doors in a wide range of common residential and light commercial installations.

This hinge includes a self-centering mechanism that engages when the door is within approximately 15 degrees of the closed position, helping guide the door to a consistent closed alignment after use while maintaining a refined visual profile.

Key Benefits

• Supports frameless shower doors with a beveled-edge hinge design for a softer appearance
• Self-centering action within 15 degrees of the closed position
• Standard-duty construction suitable for typical shower door installations
• Solid brass construction for durability in wet environments
• Compatible with multiple glass thicknesses using included gaskets

Specifications

Product type: Standard-duty wall mount hinge

Backplate style: H backplate

Edge profile: Beveled edges

Construction: Solid brass

Glass type: Tempered safety glass only

Glass thickness range: 3/8 in (10 mm) to 1/2 in (12 mm)

Closing type: Self-centering within 15 degrees of closed position

Cutout required: Yes

Available finishes: Matte Black, Brushed Nickel, Chrome Polish

Maximum Door Capacities

Using 2 hinges:

• 3/8 in (10 mm) glass: Maximum 80 lbs (36 kg), door width up to 28 in (711 mm)
• 1/2 in (12 mm) glass: Maximum 80 lbs (36 kg), door width up to 28 in (711 mm)

Using 3 hinges:

• 3/8 in (10 mm) glass: Maximum 120 lbs (54 kg), door width up to 32 in (813 mm)
• 1/2 in (12 mm) glass: Maximum 120 lbs (54 kg), door width up to 32 in (813 mm)

Note: Do not exceed either the maximum recommended door weight or width when determining the proper quantity of hinges.

Gasket Usage

3/8 in (10 mm) glass: Use one thick gasket on each side

1/2 in (12 mm) glass: Use one thin gasket on each side

Common Applications

Frameless shower doors in residential bathrooms

Fixed-to-wall glass door installations

Replacement hinges for updating hardware style while retaining existing glass doors

What’s Included

Standard-duty wall mount hinge

Flat EVA gaskets

Mounting screws

Installation template

Installation Notes

This hinge is intended for use with tempered safety glass only. Do not use spray lubricants or abrasive cleaners on the hinge, as these may damage the finish or internal components.

Limitations

This hinge is intended for standard frameless shower door applications only. It is not designed for use with non-tempered glass or applications exceeding the recommended door size and weight limits.
